While sightings first surfaced at the Traka gravel race in May, we got our first real look at a Factor One-inspired gravel bike at Unbound later in the same month, ridden by former WorldTour pro Romain Bardet and some of his teammates. I wouldn’t say I was shocked so much as I was surprised, as I was told just a few weeks earlier that the company was capping its gravel bike offering at three distinct models – at the time that comprised the Ostro Gravel, Aluto and recently released Sarana.
Unbeknownst to me, however, Factor was already cooking up a radical new aero gravel machine designed to replace the Ostro Gravel. Dubbed the Elara, it came to fruition as an idea floated by the brand’s athletes – Magnus Bak Klaris and Romain Bardet, both of whom were instrumental in bringing it to life. Magnus, a self-confessed cycling tech obsessive and PhD candidate, asked the design team for an aero gravel bike solution that could accommodate 57mm-wide tyres, as he felt this was the future of gravel racing and could potentially make him faster. At the time, and still today, there isn’t another aero-racing gravel bike on the market that can accommodate a 2.2-inch tyre.

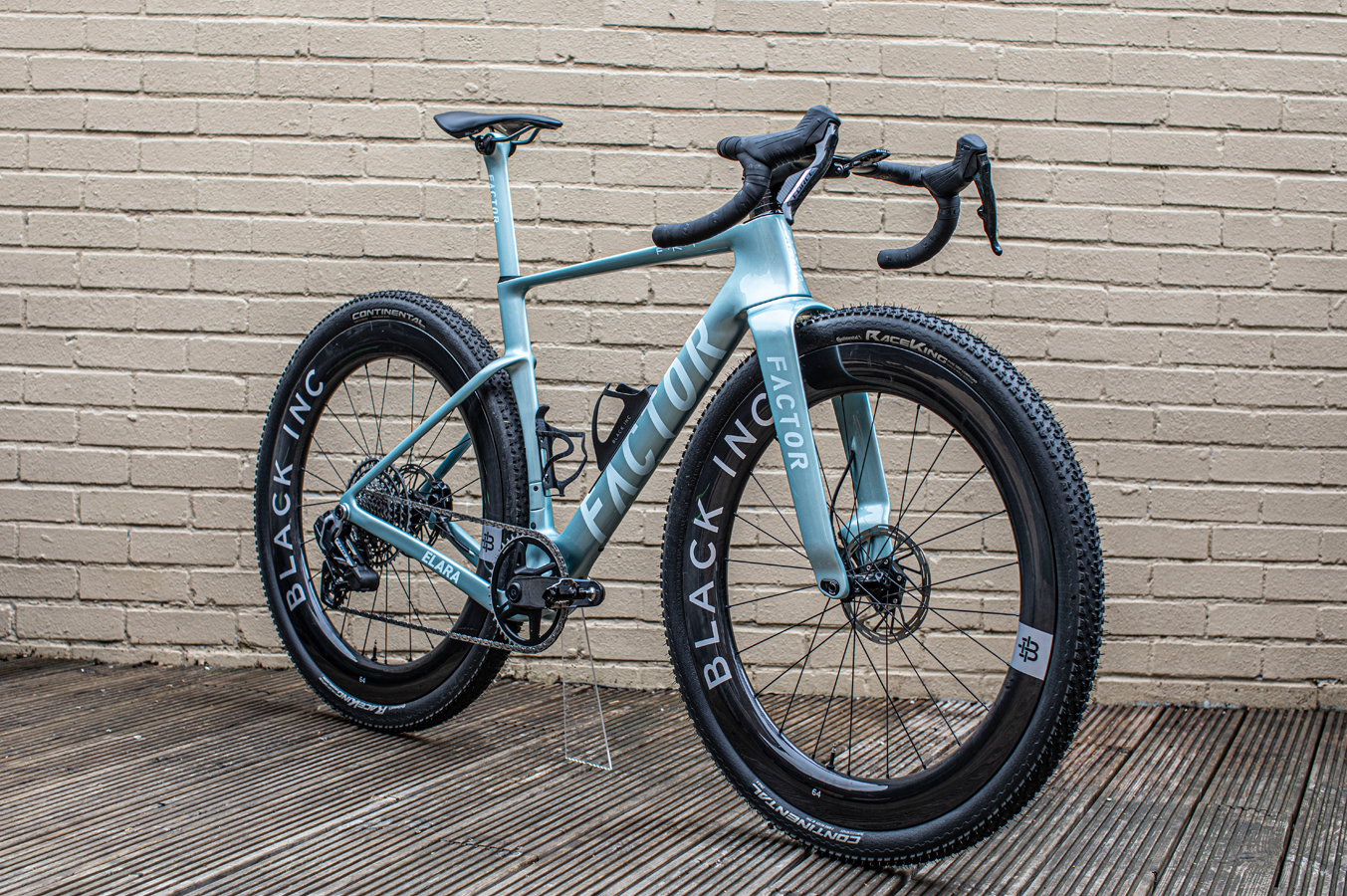

The Elara is available in two colours: virescent blue (pictured here) or matte carbon
(Image credit: Aaron Borrill)
That said, before I’m summoned for a public flogging, I know there are other gravel bikes that can take a 2.2-inch tyre – the Factor Sarana is a case in point – the only difference here is that they’re not in the same category as the aero-optimised Elara; they’re more adventure-focussed.
Latest Videos FromCycling Weekly
Factor’s three-model gravel lineup aims to address the various offshoots of the burgeoning gravel cycling discipline: the Aluto represents the middle ground (Race Balance), the Sarana takes care of the adventure side (Race Endurance), while the Elara is an all-out speed merchant (Race Speed).

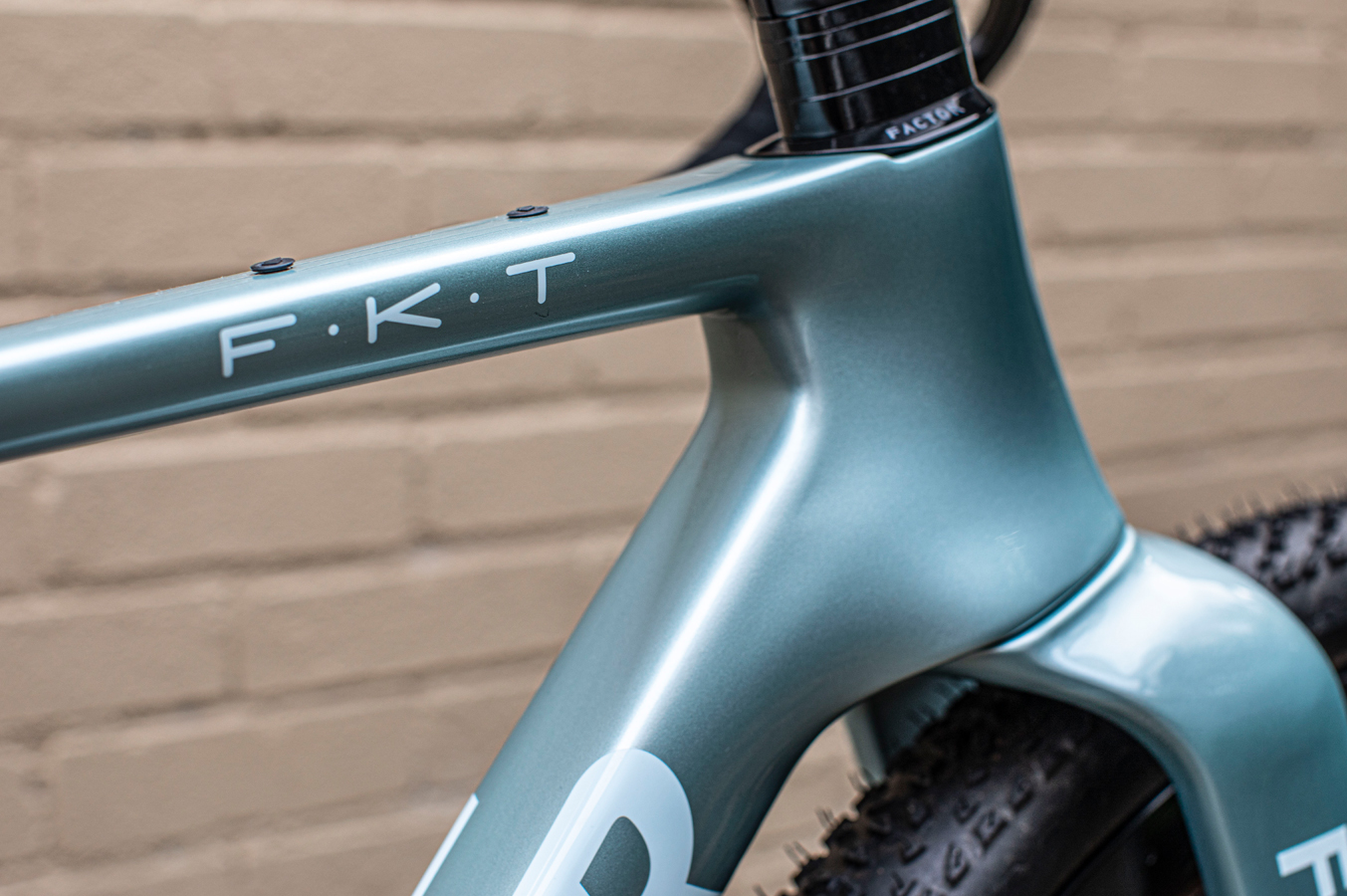

F.K.T. is an acronym for Fastest Known Time – an apt moniker
(Image credit: Aaron Borrill)
Design details
The Elara is available in two colours: virescent blue (pictured here) or matte carbon. I’m a huge fan of raw carbon finishes and would have loved to see the bike in that configuration but the metallic, desaturated turquoise hue is rather pretty. I like the colour-coded setapost, too – it’s a lovely detail, so is the F.K.T. logo (Fastest Known Time) on the top tube.
In terms of frame options, the Factor Elara is available in six sizes from 49 to 61cm.
As expected, the frame and fork are constructed using a meld of materials – TeXtreme, Toray, Nippon Graphite and Pan-Based fibres, but where 3K woven fibers typically comprise the downtube, Factor has incorporated reinforced TeXtreme for extra strength.
The front triangle draws many parallels with the Factor One and Ostro VAM – specifically the fork integration, hourglass-shaped head tube, and leading edge around the downtube. Factor cites a 2.5w gain from relocating the leading edge forward on the fork compared to the original fork design.
Ah yes, original fork design, I hear you mumble?
Yep, the Factor Elara initially started out with a traditional-looking fork, but after seeing the online memes showing the Factor One aero bike with a 2.2-inch mountain bike tyre shoehorned up front, the design team got thinking and tested the Elara with a wider, Factor One-style fork in the wind tunnel in December last year.
What started as a laugh turned out to be an effective solution that benefitted both aerodynamics and handling.
This was quantified using CFD modelling with a textured map and followed by 3D tyre testing before validation in the wind tunnel – the testing showed that airflow was contained within the fork with measurable drag reductions with 45–57mm race tyres, delivering aero efficiency on par with modern road frames.
While it uses a similar aero chin protrusion to the One, in this application, the fork is UCI-illegal because the fork conformity and down tube boxes intersect. Look closely, and there’s no UCI-approved decal to be found; then again, most of the races where the Elara will be used are non-UCI-sanctioned events, so it doesn’t matter.

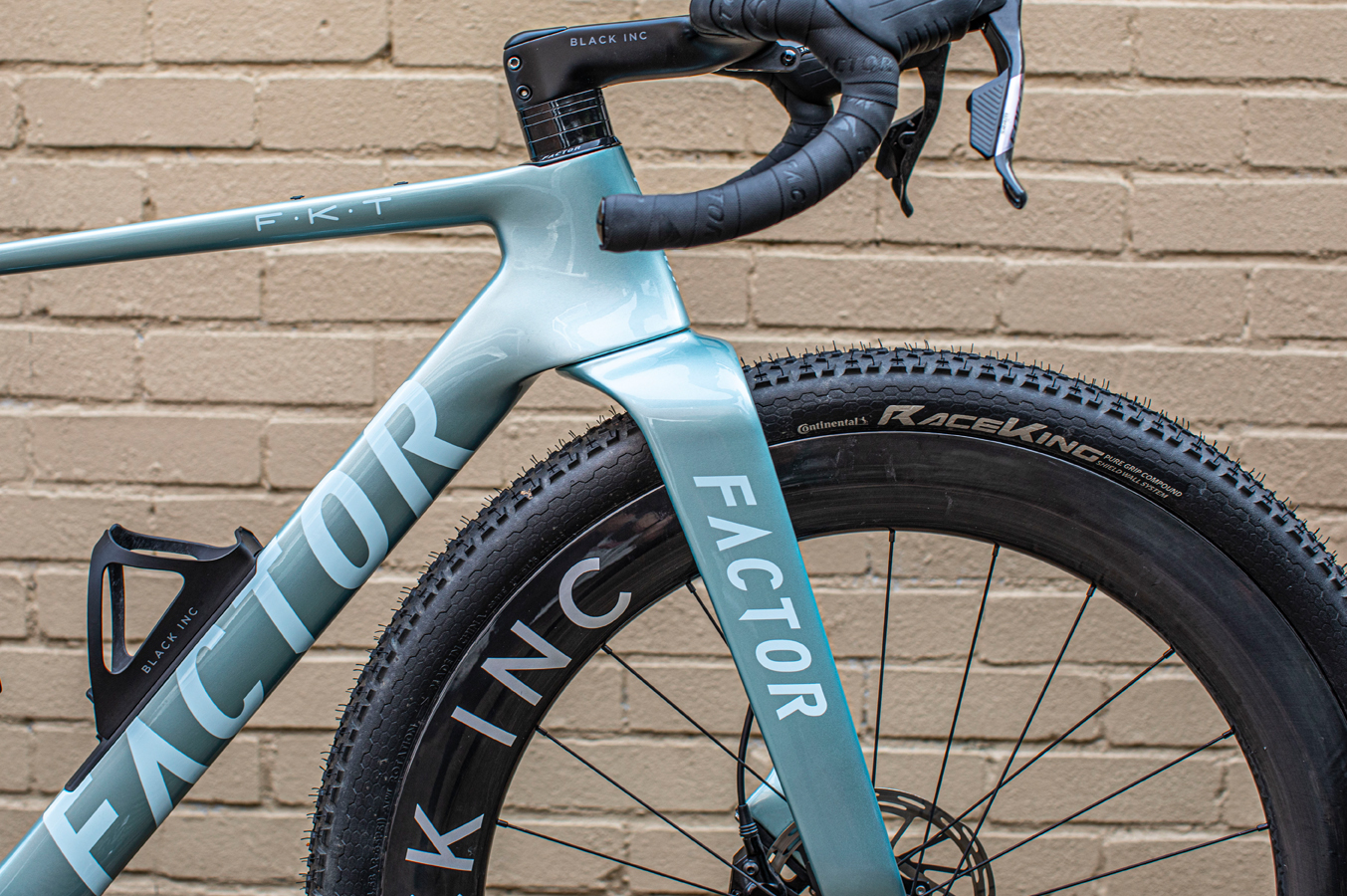

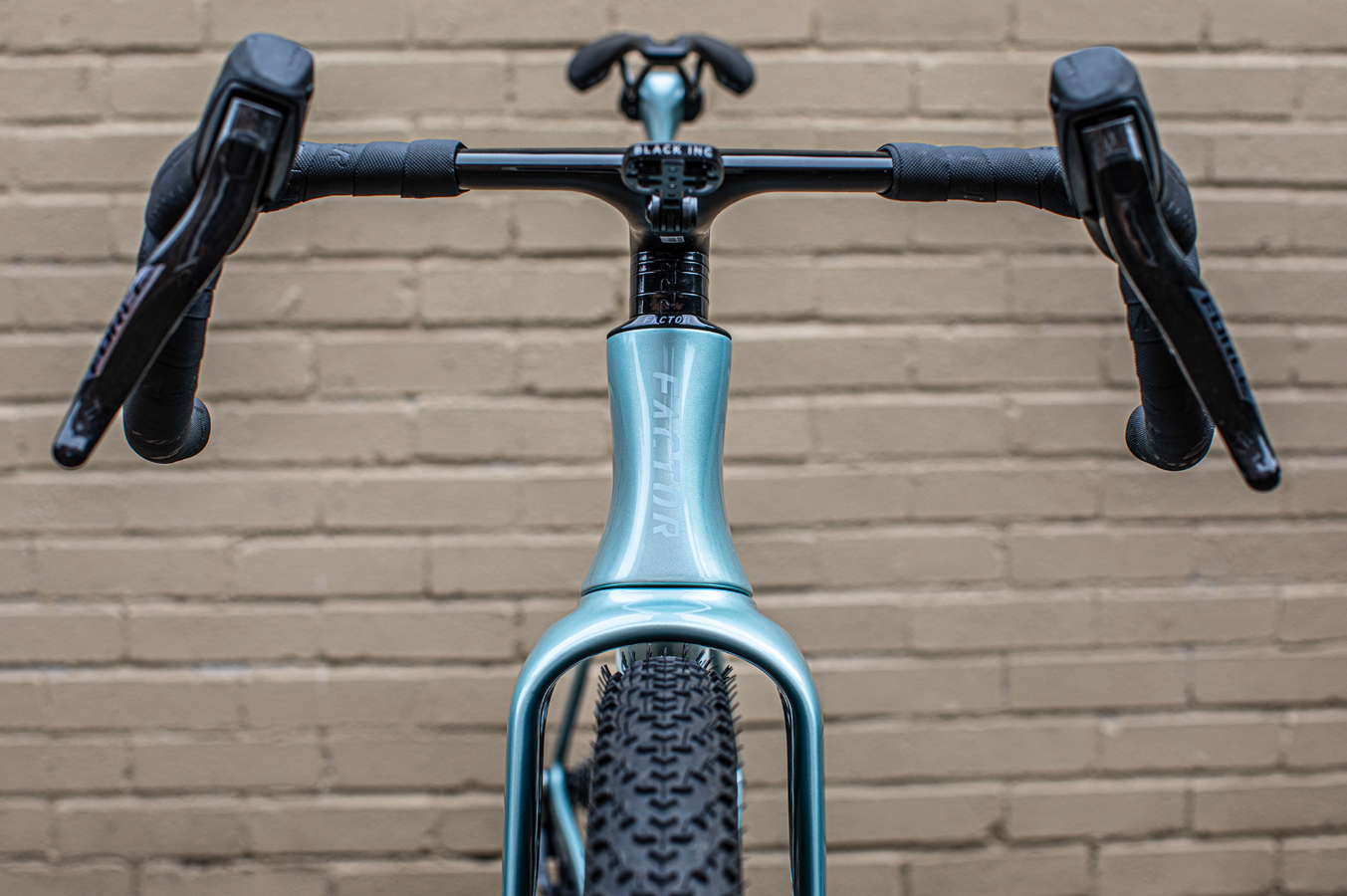

The hour-glass-shaped headtube is an elegant touch, and contrasts the bold, wide-set fork legs
(Image credit: Aaron Borrill)
Those with a keen eye might even recall the Factor gravel bikes used by Romain Bardet and Magnus Bak Klaris at the Santa Vall gravel race in Spain earlier this year. While some cited the bikes as updated Ostro Gravel bikes, they were actually early Elara prototypes – just without the aero fork pictured here. Factor actually had aero forks ready to go, but they hadn’t undergone the necessary safety checks and stress testing, so the call was made to field-test the Elara with the regular fork.
The Elara’s geometry is inspired by Factor’s road bikes, and the riding position also reflects this – so it has a long reach with reduced trail number and a bottom bracket that is positioned lower to ensure stability across the board. To avoid stretching out the chainstays, the bottom bracket has been positioned lower (80mm) to help triangulate the rear end – this has also ensured stability and preserved agile handling characteristics. It also doesn’t veer too far from rear centre dimension relative to the rider’s centre of gravity, as the Ostro Gravel does.
On a medium-sized frame (54cm), Factor has paired a 72.5-degree head angle with a 74.5-degree seat tube angle, with the chainstays measuring 420mm. In fact, the head tube angle, trail number, and fork offset are basically the same as the Ostro Gravel.
While it uses a similar aero chin protrusion to the One, in this application, the fork is UCI-illegal because the fork conformity and down tube boxes intersect
(Image credit: Aaron Borrill)
The big news with the Factor Elara, however, comes in the way it was manufactured: the entire frame is a one-piece monocoque, constructed to exact tolerances needed to clear a 57mm chainline, 52T 1x chainring, and a two-by front derailleur. The monocoque construction also makes for a lighter frameset. This also means the chainstays are constructed as a single piece and not bonded, so the alignment is perfect. It has allowed Factor to use wafer-thin rather than solid carbon, so Shimano Di2 cables can still thread out the rear. As such, the rear triangle uses a split-plane design with a lowered drive-side stay and an offset seat-tube junction.
To ensure a polished product, Factor spent considerable time refining the details and industrial design of the rubber gaskets used throughout the bike. Another area was the seatpost clamp, which is now removable and easily serviceable while retaining all the benefits of the pusher clamp system seen on the Ostro Gravel 2.0. Other details include a default 160/160 front/rear rotor configuration, a threaded bottom bracket, UDH functionality, range-universal dust caps for handlebar cross-compatibility, and the same seatpost dimensions as the Ostro VAM.

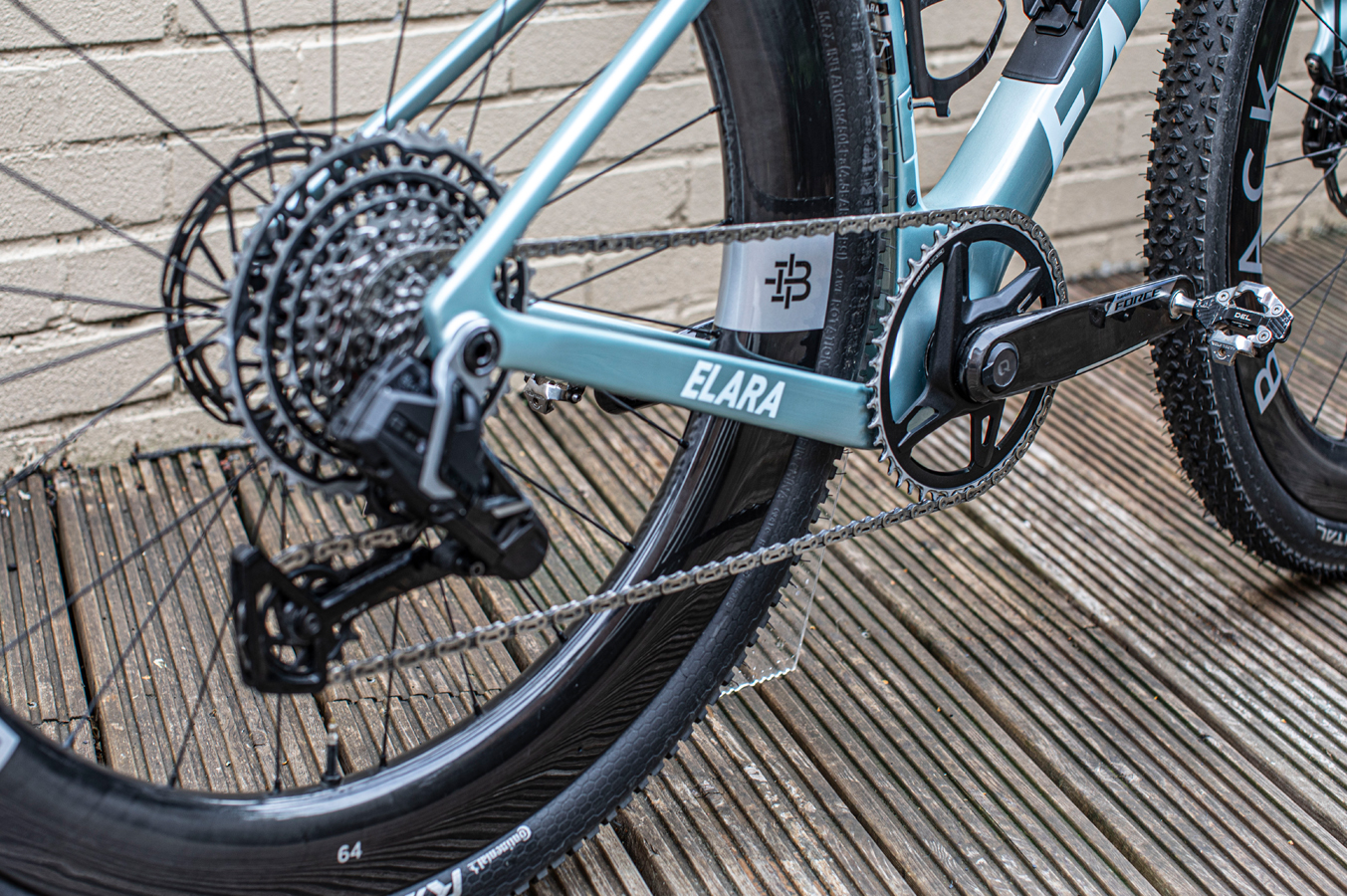

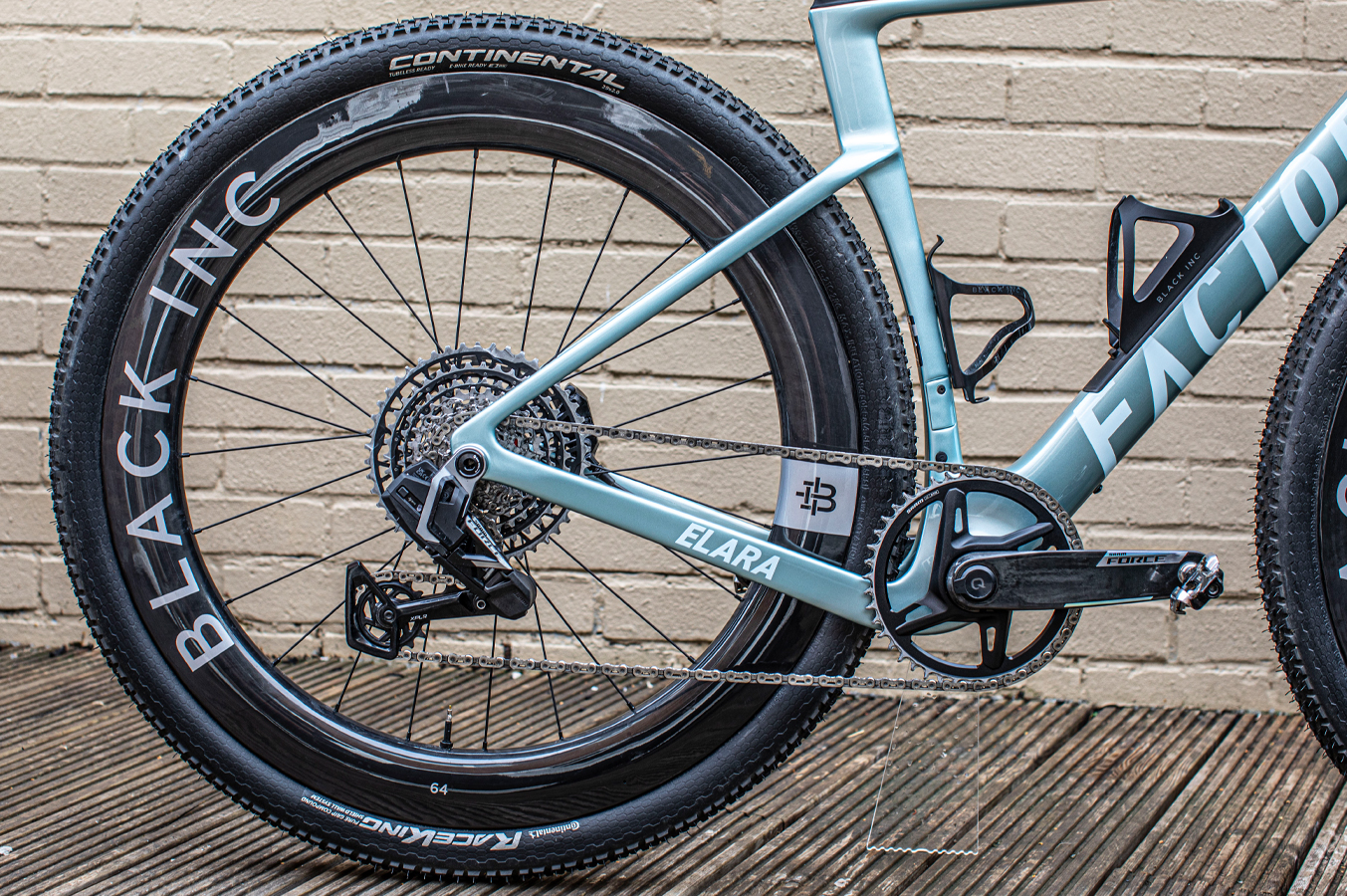

SRAM’s Force XPLR AXS groupset is faultless, not to menton bulletproof
(Image credit: Aaron Borrill)
Specifications
The Elara is the second Factor gravel bike I’ve recently sampled that came outfitted with SRAM Force AXS and a power meter. It really is a superb groupset, delivering Red AXS performance at a much more palatable price point. In terms of the tactile experience, overall performance, and brake modulation, the differences are marginal.
This particular build features Force XPLR AXS, which combines a one-by 44T chainring with a 10-46T cassette and direct-mount rear mech. Shifting is crisp and predictable, and the gearing is nicely matched for the terrain I traverse around the Surrey Hills. The Elara also benefits from a new 38cm Black Inc Aero Gravel Bar AB07 matched to a 120mm stem, complete with a 17-degree flared drop.
With a 64mm-deep rim profile and 30mm internal width, the Black Inc 64 Gravel wheels were made specifically for the Elara platform
(Image credit: Aaron Borrill)
Of all the components, the big talking point is the Black Inc 64 Gravel wheels. Built exclusively for the Factor Elara, they function as a complete system with the frameset. While you can outfit it with shallower Black Inc 46 wheels or pair it with another compatible brand, the bike was optimised around the 64mm deep rim and 2.0in-wide tyres. The deep rim profile is matched to a modern 30mm internal rim width (40mm external) and plays nicely with tyres up to 57mm (2.2in). The minimum tyre size compatible with the Black Inc 64 Gravel wheels is 47mm.
All this, however, means the wheels tip the scales at a rather hefty 1,620g (720/900g front/rear).
There’s in-frame storage for those who require it. Accessible through a door beneath the Black Inc bottle cage on the downtube, it houses a pouch for storing tools, a tube, and perhaps some emergency gels.

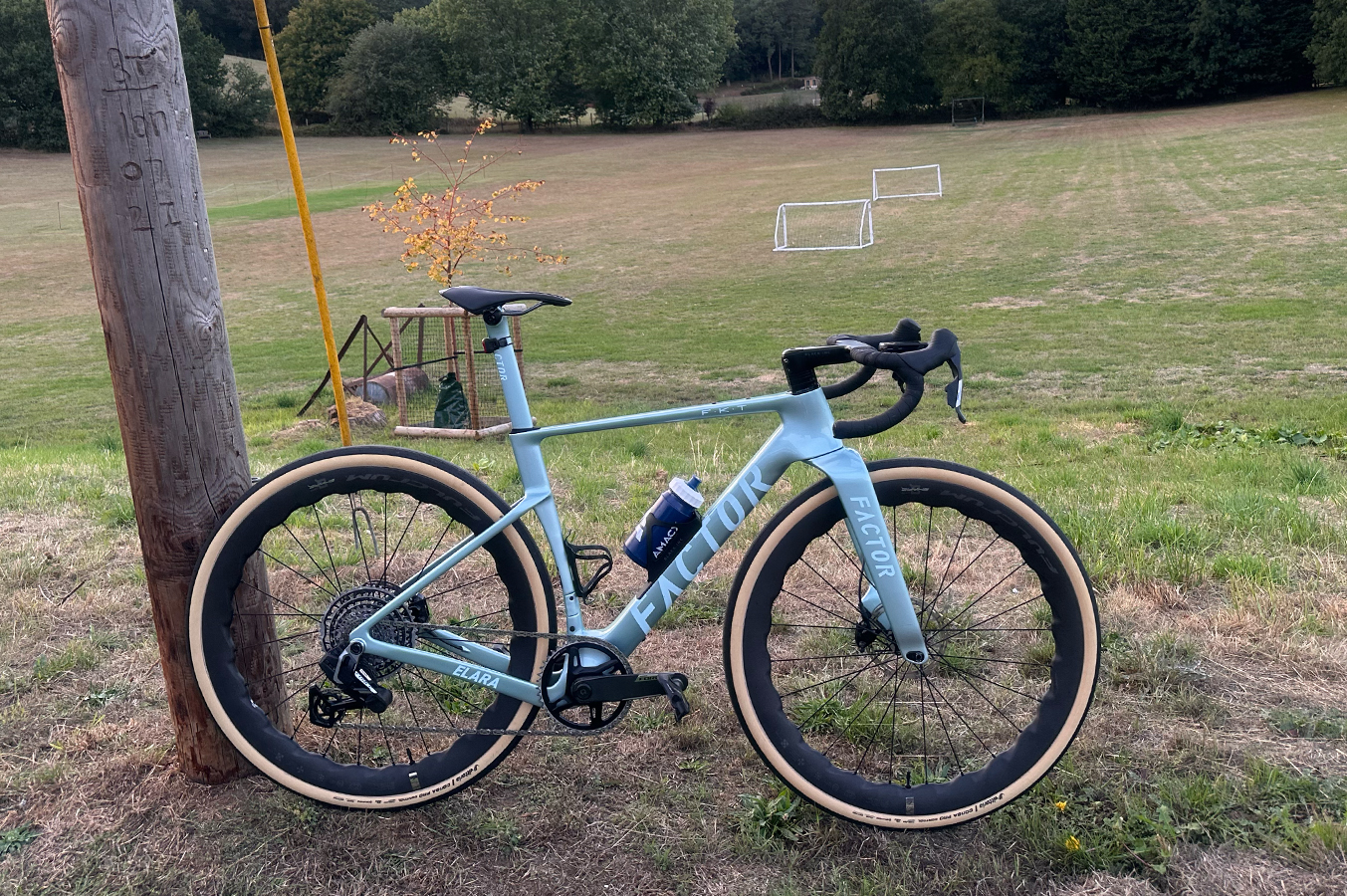

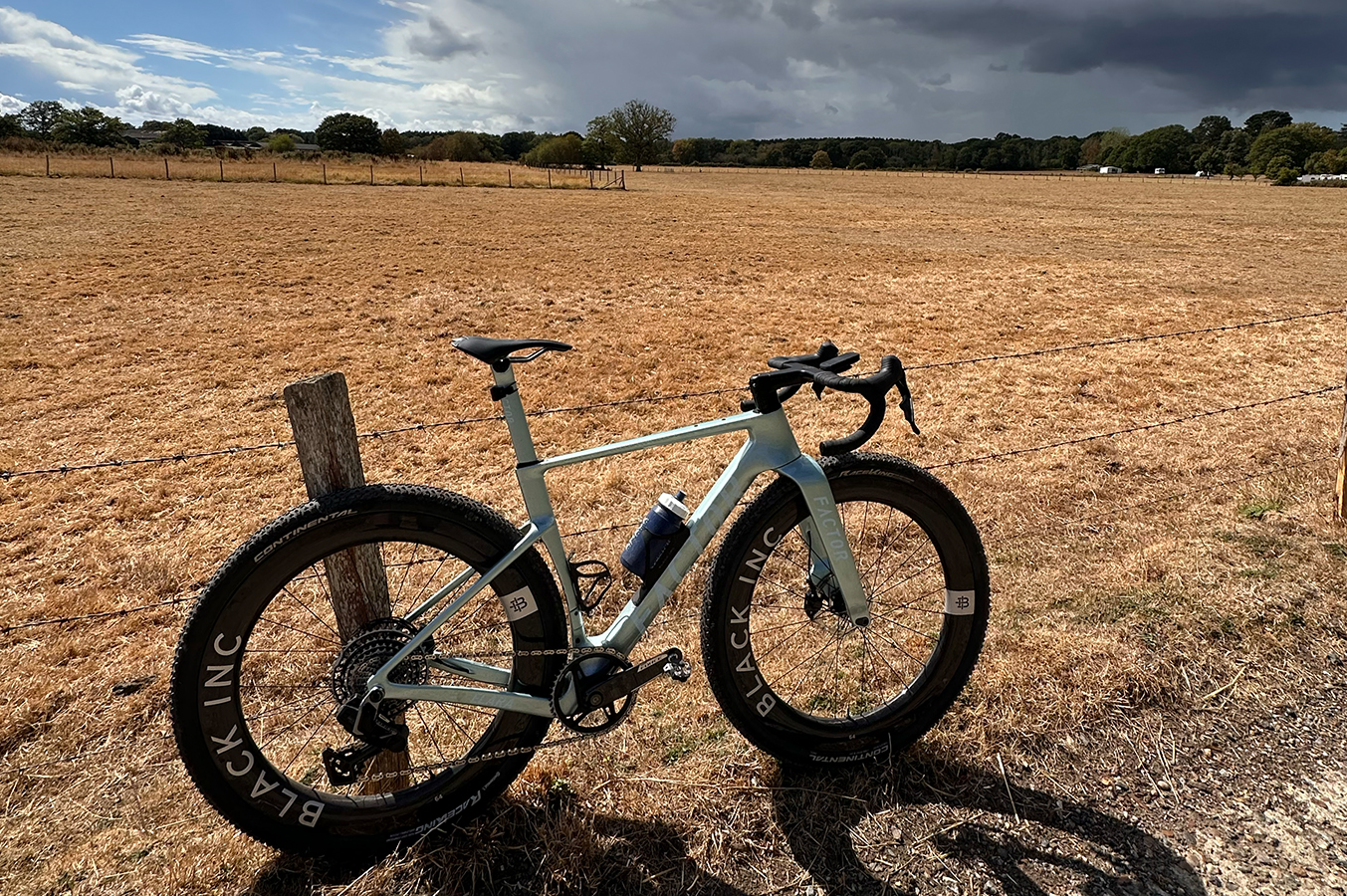

The Factor Elara is at home on fast, open gravel roads where it can utilise its aero-honed tube shapes and wheels – it’s fairly rapid in this environment
(Image credit: Aaron Borrill)
Performance
The Factor Elara was designed for speed – it’s a fast bike, and that goes for whether you ride it on gravel or tarmac. As such, the bike works as a complete system – frame set and wheels combined – and you can feel this out on the trail. For a bike as radical-looking as the Elara, it’s incredibly easy to ride, and despite the 8.75kg weight, it minces rolling hills and is able to get up the steeper stuff fairly adequately, too.
While you can feel the added rolling resistance of the 2.0in Continental Race King tyres, the benefits these rubber options afford are truly incredible, especially when the terrain is washboard-like or heavily corrugated.
I’ve raced gravel bikes in week-long stage races with much firmer ride qualities than the Elara, and I think the firmness-to-comfort balance here is good. The vibration-induced speed loss I’ve often experienced just didn’t feel present as the Black Inc 64 Gravel wheels and tyres soaked up vibrations and ever-changing chunky terrain effectively. The result is speed unlike anything else I’ve tested – in fact, you’ll find yourself held back more by your lack of confidence rather than the Elara. Overcome this and ride the Elara harder than you usually ride a gravel bike, and the rewards are massive.
I found myself barreling into corners at much higher speeds than usual, relying on the blocky shoulder knobs of the Race Kings to grip into the hardpack lurking under the powdery surface layers. At first you can hear the tyre breaking traction as you lean in, pushing the front end into the trail beneath, followed by a skidding sensation from the unweighted rear – but then the tyres bite, and grip comes in spades. Get into a rhythm and start stitching together a state of flow, and it becomes a vivid picture of detail and connection, often missing from the gravel bike recipe. It’s a little trickier in singletrack – especially when climbing tightly stitched-together sections and toe overlap comes into play.
The frame can accommodate tires as wide as 57 mm or 2.2 inches. I tested it with the stock 2.0-inch Continental Race Kings as well as 42mm Vittoria Corsa Control road tyres
(Image credit: Aaron Borrill)
The Elara only truly comes alive when the road ahead opens up. Tuck in and assume the lowest position you can, and watch the speed increase on your cycling computer. It’s absolutely mental; not even the terrain can hold it back or scrub off progress.
The ride quality is actually very good for all intents and purposes. Of course, the wheels and tyres are a large reason for its ability to soak up bumps and hits from below, and this helps with keeping things swift. The front end and Black Inc Aero Gravel Bar AB07 arrangement is pretty stiff (as is the BB area) and expected at this level, and while I suffered no real hand and arm pain, I’m confident that if you pair it with the correct tyre pressure (for your weight), you’ll be able to find a balance to best suit your needs.
The riding position is fairly aggressive and not too far removed from other racing gravel bikes (and some road bikes for that matter); Factor made a point of retaining the Ostro Gravel’s frame angles and for good reason – there was nothing to fix. As a racing gravel bike, the Elara needs to be ridden hard, and that means setting it up to match its intentions. I kept things aggressive with a forward-bias setup, which let me stretch out into an aero position.
The gearing is good, too. While it can accommodate two-by drivetrains and subsequently unlock another level of speed, the stock 44T, 10-46T gearing spread was ample for my testing routes.

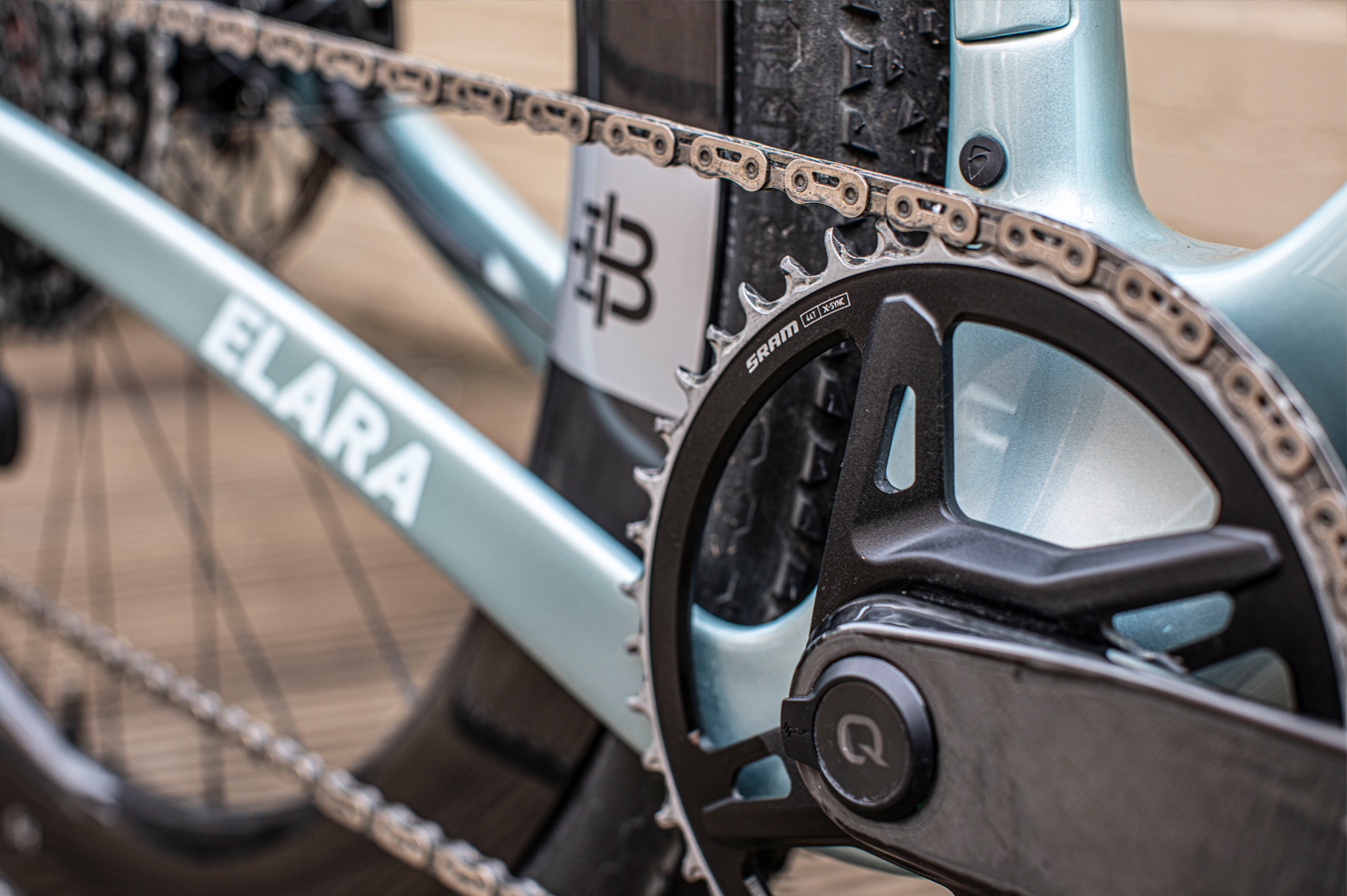

While you’ll unlock greater top end from a two-by chainring configuration, the stock 44T, 10-46T SRAM Force drivetrain proved ideal for the testing I carried out
(Image credit: Aaron Borrill)
The bars are pretty ergonomic for the application, with a slight flare that can help you change hand position should you require it. The one-piece bar-stem configuration provides confidence to hit ruts at speed without fear of the bar rotating in the stem, as traditional bar/stem setups often can. A setup like this is even more important on descents where you need the confidence and trust to navigate technical terrain at high speeds.
I tested the Elara on both gravel and tarmac, with both the stock Black Inc 64 Gravel wheels with 2.0in Conti Race Kings as well as Fulcrum Sharq GR wheels wrapped in Vittoria Corsa Pro Control 42c road tyres. This test showed that the Elara is absolutely rapid on tarmac with slick rubber fitted, and can easily keep up on fast group rides – even at average speeds of 36km/h and above.
On the road with the stock Race Kings, the Elara never really feels held back either; if anything, it’s more the humming of the 50mm tyres that suggests you’re going slower or working harder than you actually are.

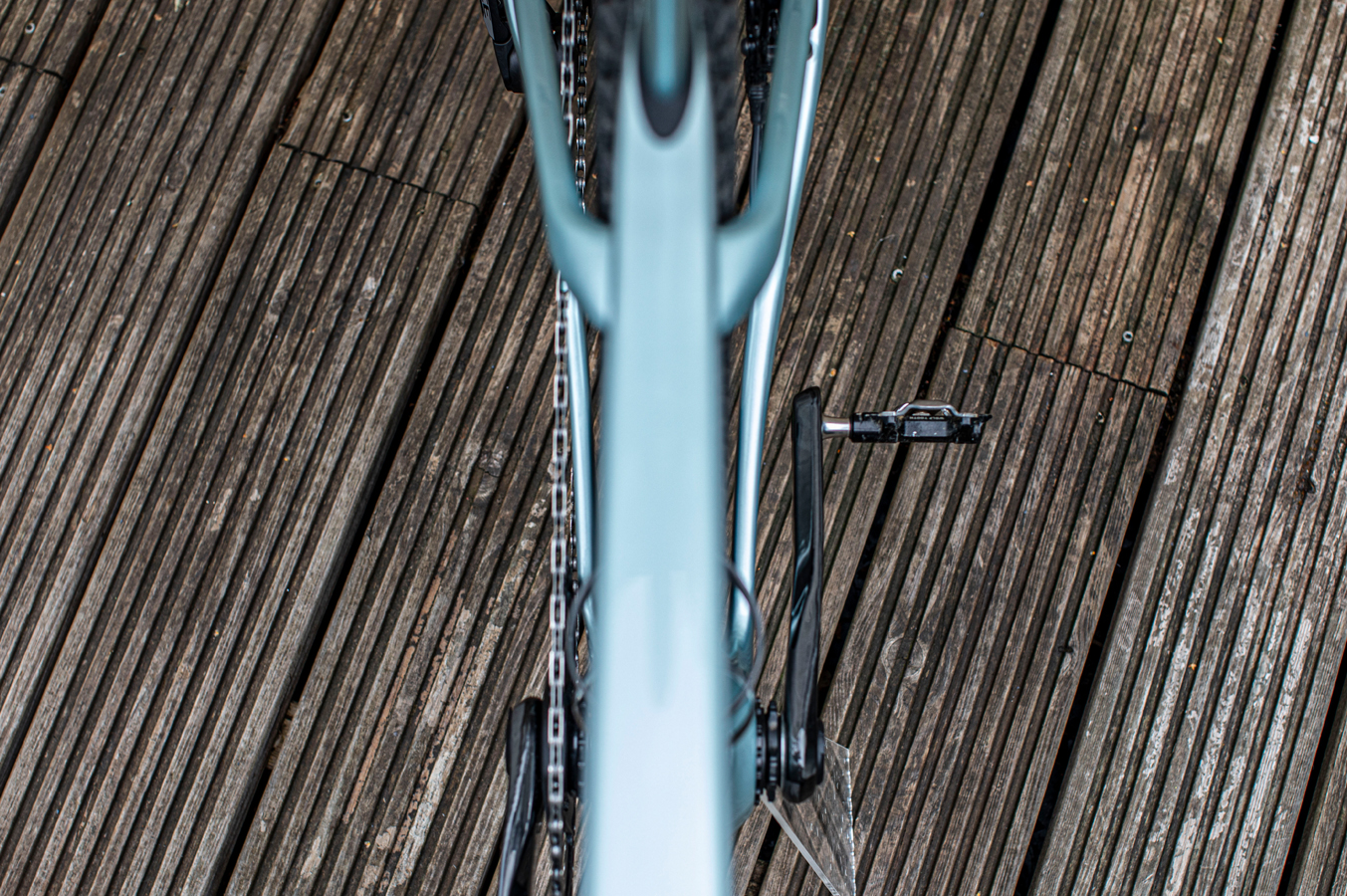

The chainstays are constructed as a single piece and not bonded, so the alignment is perfect and width wafer-thin to ensure compatibility with 57mm tyres and internal clearance for Di2 cables
(Image credit: Aaron Borrill)
Tyre clearance is ample, especially on the stock 2.0in Race King configuration. While it’s been fairly dry in South of England where I’ve done the majority of my testing, there was at least one wet, muddy day that put the grip and clearance tolerances to the test. The Race Kings are great in that their mud clearing is impressive, as is grip in the wet, but over some prolonged, seriously sticky sections, I could feel and hear mud coming into contact with the underside of the fork crown. Whether this might be more of an issue in areas with clay soil, I don’t know, but in those conditions, no bike will be immune.
Overall, I had no issues with the stock 2.0in tyres, as well as no desire nor reason to shoehorn anything wider in either – and I put this bike through its paces on properly chunky, muddy technical terrain.
As a racing package, the Factor Elara makes complete sense for events sich as Unbound and stage races like Gravel Burn. In fact, if I were entered for this year’s edition of Gravel Burn, the Elara would be my weapon of choice given the speed it’s able to maintain over rough terrain – any weight penalty is more than made up for in comfort, speed and confidence. The Black Inc 64 Gravel wheels and 2.0-inch tyres essentially act as suspension and let you bulldoze and bully your way through terrain that would previously thwart progress and bring about unimaginable levels of vibration-induced wrist, head, neck, and body pain.

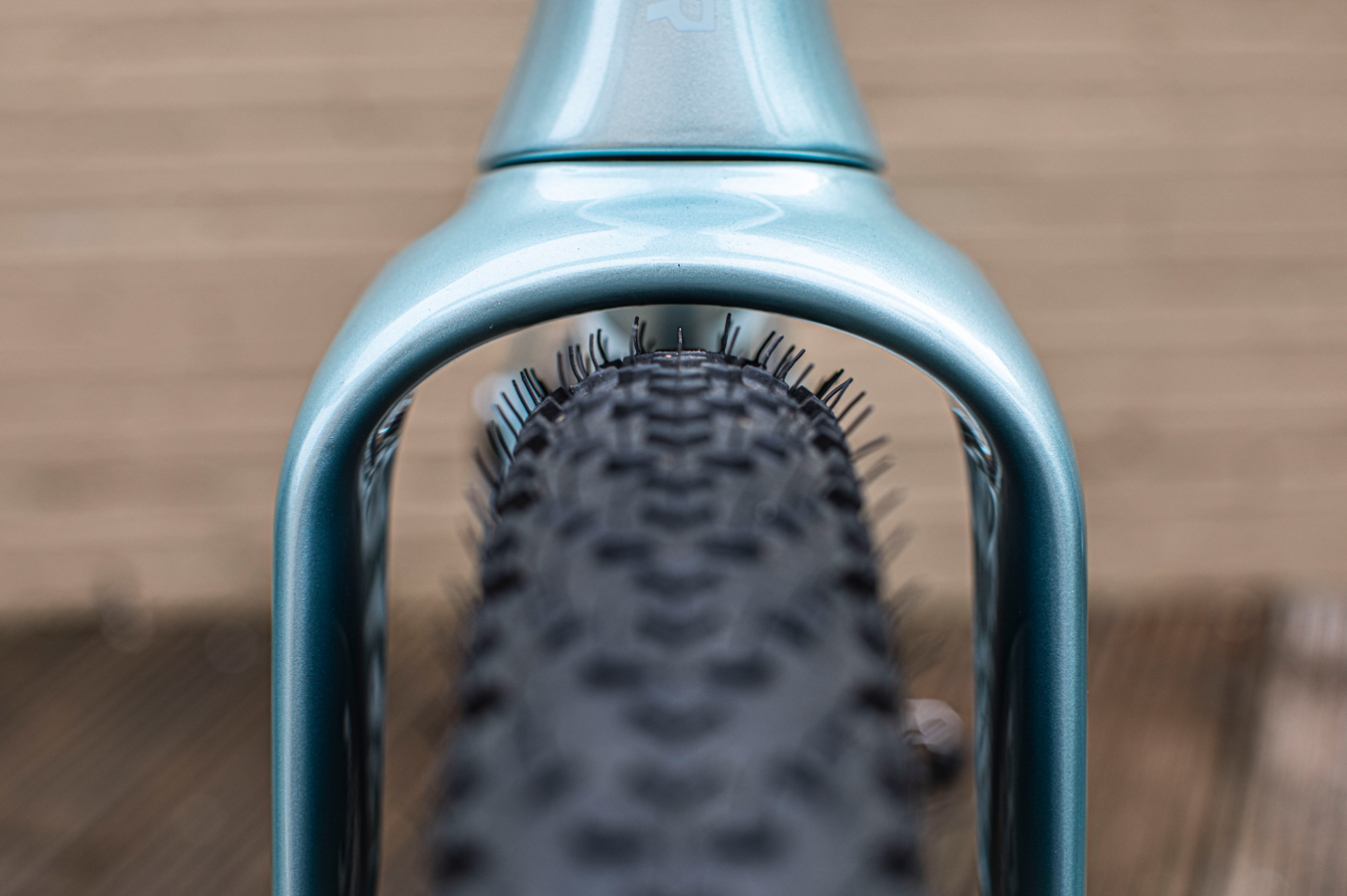

There’s more than enough space for a 2.0-inch tyre, granted you might get some mud rubbing the inner crown during winter riding
(Image credit: Aaron Borrill)
Value
As it stands, the Factor Elara occupies a unique position: it has no real rivals. Sure, the 3T Racemax2 Force gravel bike comes to mind, but it offers neither the same level of tyre clearance nor the aggressive geometry of the Elara, despite coming in at a more affordable price point in the UK and EU (it’s pricier in the US). It also lacks the super-aero Black Inc 64 Gravel wheels, which are a key differentiator and a key component that set the Factor Elara apart.
The Factor Elara – as expected – is a pricey beast, but there are options available. The bike pictured here will set you back £9,499/ $9,699/ €11,599 as a full build. Opt for SRAM Red AXS, and this figure will climb to £10,999/ $11,399/ €13,599.
You can also purchase the frameset and build it up accordingly if you’ve already got some components lying about; this will cost you £5,899/ $5,999/ €7,199. Factor says you can build and spec it with any gravel wheelset. That said, having tested it both as a full system and with aftermarket wheels, the Black Inc 64s are the way to go if you’re after the full experience.
Purchasing the Black Inc 64 Gravel wheels separately will add £2,199/ $2,199/ €2,599 to your bill, but there’s also a shallower £1,699/ $1,699/ €1,999 Black Inc 46 wheelset option if that’s too dear.

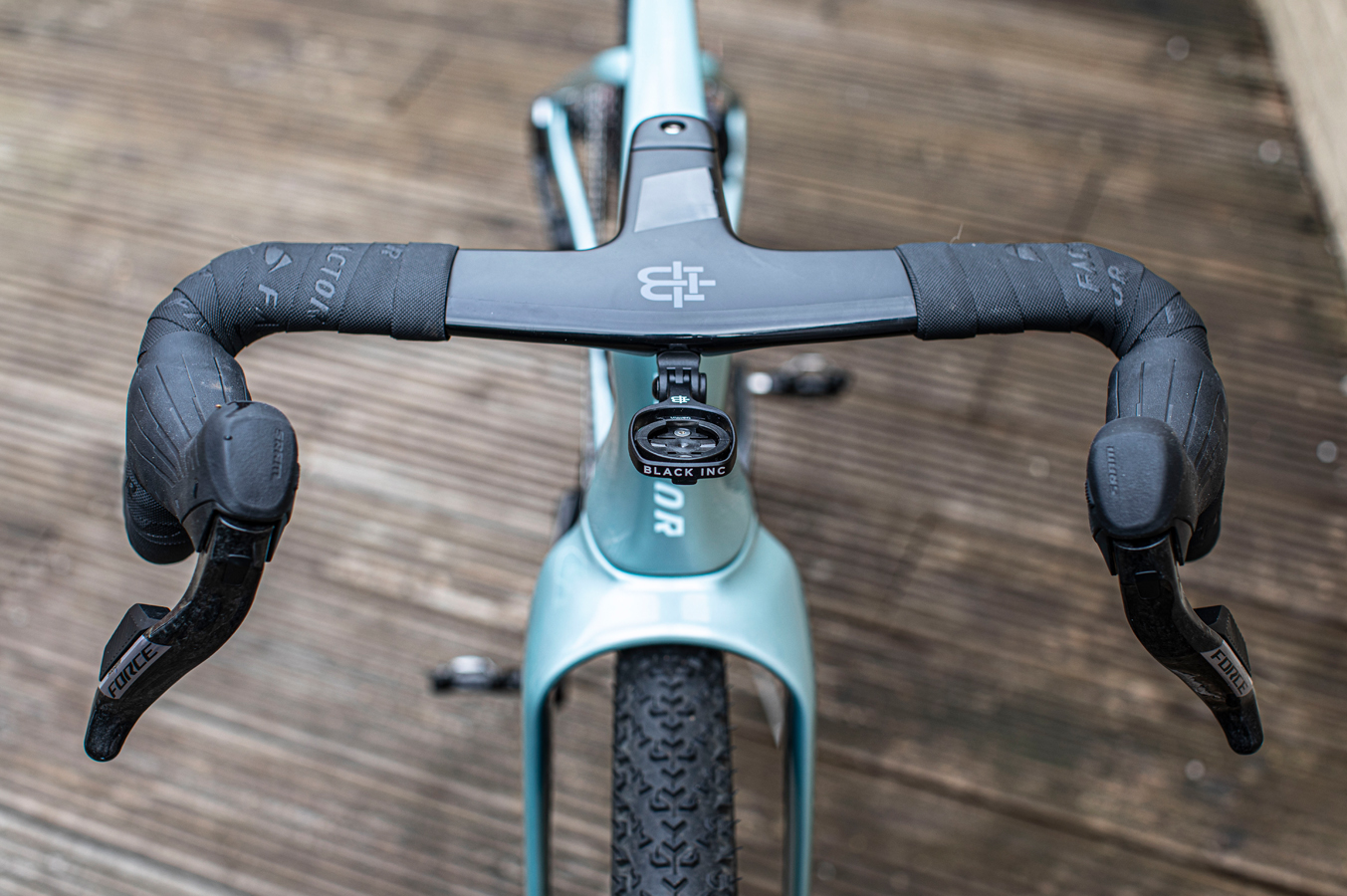

Black Inc Aero Gravel Bar AB07 is stiff and narrow, and allows for confident descending thanks to the one-piece construction
(Image credit: Aaron Borrill)
Scoring breakdown
|
Design details |
The Elara is stunningly designed, retaining Factor’s product DNA. The wide-set fork works well both visually and practically and the virescent blue paint job complements the entire package. |
10/10 |
|
Specifications |
SRAM’s Force XPLR AXS groupset is all you need. Sure, you can drop a few grams going Red AXS, but that means hiking the price significantly. The Black Inc handlebar and 64 Gravel wheels complete a rather impressively appointed machine. |
9/10 |
|
Weight |
It’s not what I’d call heavy but a number closer to 8kg would be welcomed. All in, the Elara weighs 8.75kg (54cm), which I reckon will be par for the course among new aero gravel bikes. |
8/10 |
|
Performance and handling |
Faultless. Grip and handling are sublime, and straightline performance is exceptional – this goes for all terrain types, gravel and tarmac included. I had no issues with the stock 2.0in tyres as well as no desire nor reason to shoehorn anything wider in either. |
10/10 |
|
Value |
For a complete Force-level bike and the option going the frameset route, there’s scope to offset the investment to a certain extent. It is pricey but at the same time, there’s nothing else like it it on the market, so perhaps I’ll revisit this attribute once the segment starts populating. |
5.5/10 |
|
Overall |
Row 5 – Cell 1 |
85% |
Tech spec
- Price: £9,499/ $9,699/ €11,599
- Brand: Factor
- Frame: TeXtreme, Toray, Nippon Graphite with Pan-Based Fibre
- Fork: Full carbon
- Weight: 8.75kg (actual, 54cm)
- Sizes: 47, 52, 54, 56, 58, 61cm
- Levers: SRAM Force AXS
- Brakes: SRAM Force AXS, 160/160mm front/rear
- Rear derailleur: SRAM Force AXS
- Front derailleur: SRAM Force AXS
- Crankset: SRAM Force AXS with Power Meter, 44T
- Bottom bracket: T47A, threaded
- Cassette: SRAM Force XPLR AXS 10-46T
- Chain: SRAM Force
- Wheels: Black Inc 64 Gravel
- Tyres: Continental Race King 2.0
- Bar/stem: Black Inc Aero Gravel Bar AB07
- Seatpost: Factor aero-profile carbon
- Saddle: Selle Italia SLR Elite
